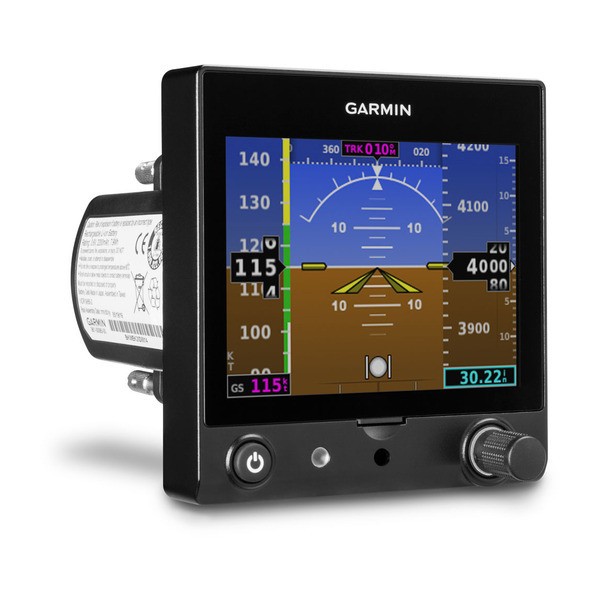

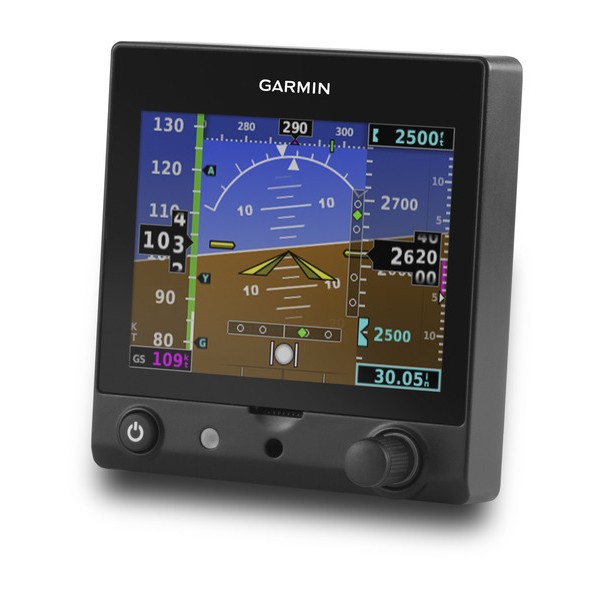

GARMIN G5 EFIS

In stock! Ref. 43605

1.699,00 € + VAT (2.055,79 € VAT Inc.)

Quantity

▲
▼

Description

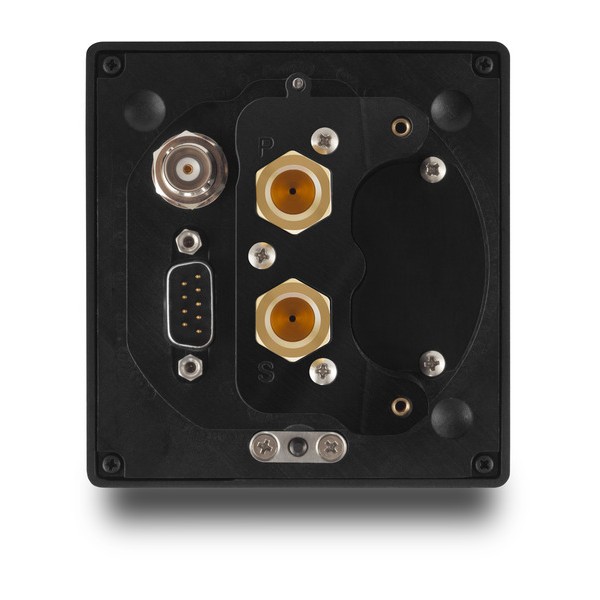

The new Garmin G5 is a simple yet powerful EFIS. We can use it as main equipment or as back-up when our aircraft is already equipped with another EFIS. It has internal GPS, so the only connections to make are power supply, pitot and static. Designed to be installed in a standard 80mm hole.

The information displayed on the screen is as follows:

Attitude indicator
Altímeter
ASI
VSI
Compass
Ground speed
Slip indicator
HSI

Specifications

Power supply: 14/28V DC
Dimensions: 86,9 x 91,4 x 91,4 mm
Weight: 283,5g. Optional battery: 151,8g
Screen size: 3,5" (320x240 Pixel)
ASI max: 300 knot
VSI max: +/- 20.000 ft/min
Altitude range: -1.400 / 30.000 feet
Optional battery: Li-Io rechargeable
Battery operation: Up to 4 horas

In the box

EFIS G5 p/n: 010-01485-01

Installation manual

User manual

Accessories

PLASTIC RACCORD STRAIGHT 1/8" to 6mm

Thread 1/8" male and spigot for 1/4" line

Ref. 59102

1,45 € + VAT (1,75 € VAT Inc.)
PLASTIC RACCORD ANGLED 1/8" to 6mm

Thread 1/8" male and spigot for 1/4" line

Ref. 59101

1,58 € + VAT (1,91 € VAT Inc.)
PLASTIC RACCORD "T" 6mm - 1/8" - 6mm

Thread 1/8" male and dual spigot for 1/4" line

Ref. 59110

1,55 € + VAT (1,88 € VAT Inc.)

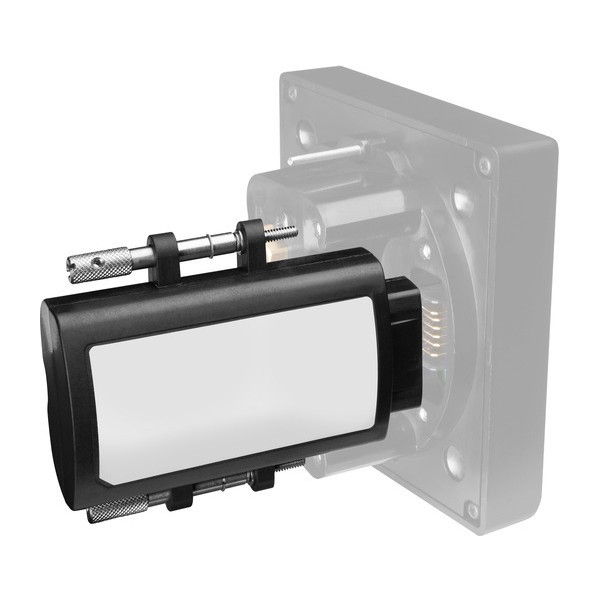

GARMIN G5 BATTERY PACK V3

Back-up battery pack fot the Garmin G5 EFIS.

Ref. 43606

297,25 € + VAT (359,67 € VAT Inc.)
GARMIN G5 INSTALLATION KIT

Ref. 43607

143,00 € + VAT (173,03 € VAT Inc.)
