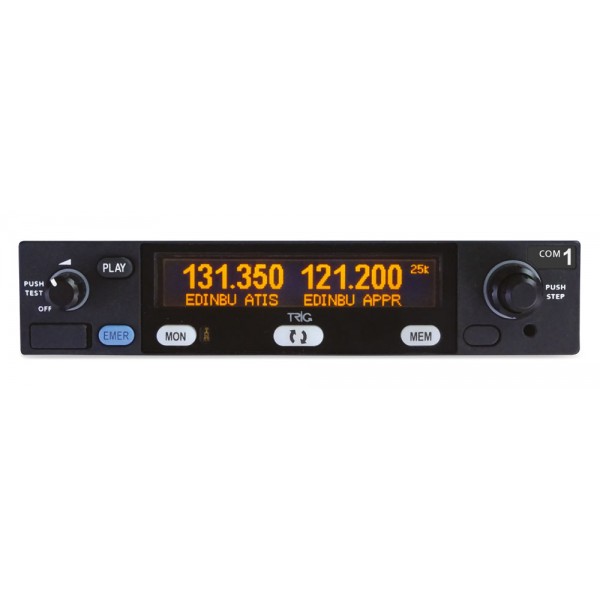

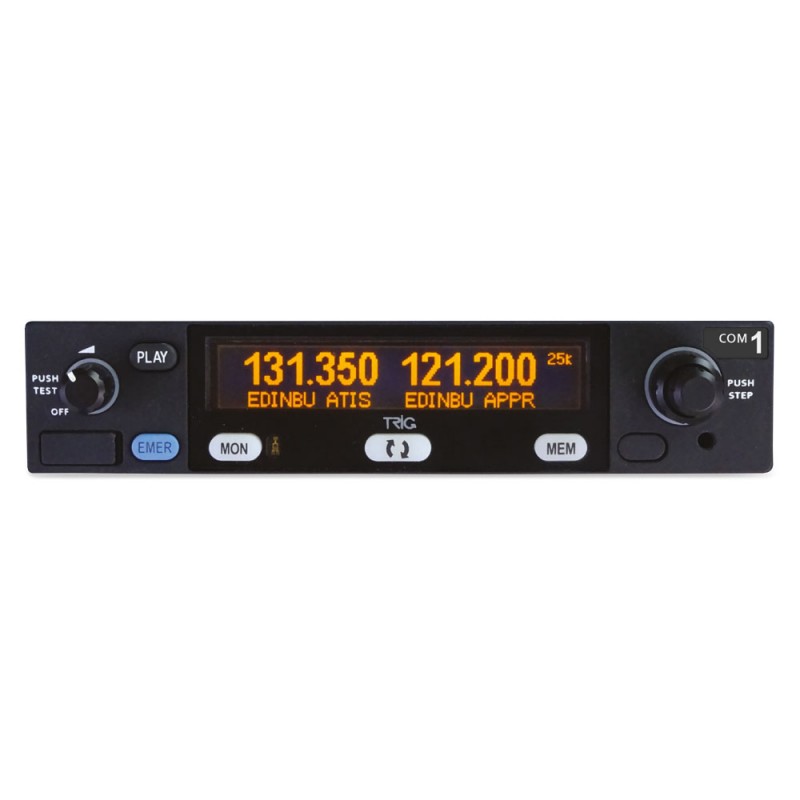

TY96 TRIG VHF RADIO (COMPLETE SYSTEM)

Stack radio


In stock! 61603

2.253,59 € + VAT (2.726,84 € VAT Inc.)

Description

The TRIG stack radio has defined a new standard in design and is packed with pilot friendly features. The radio provides crisp and clear stereo communication, faster tuning, a user friendly programmable USB database, dual watch and Trig’s popular ‘Say Again’ feature.

Combining great quality and performance each radio is housed within a superbly engineered unit, slimline and light. At only 33mm high (1.3”) the radio saves valuable stack space, but retains innovative and practical features. Trig’s stack radios are designed for general and light-sport aviation, with features that both experienced and novice pilots really appreciate.

EASY TO USE

The stack radio display is clear and bright, showing both primary and secondary frequencies along with ICAO or custom set airfield identifiers. A ‘Push Step’ knob allows the fastest change from 8.33 kHz to 25 kHz so you can tune the radio quickly without compromising your look-out.

The Dual Watch feature allows two frequencies to be monitored at the same time – it’s like having two radios in one.

The user configurable database, allows over 200 frequencies and identifiers to be downloaded to the radio from a CSV file – using the USB stick (provided). There are no subscription fees and this provides a highly flexible way to customise the radio for every flight by every pilot – perfect for fleet or club aircraft.

SAY AGAIN

The radio has a ‘Say Again’ feature. A single button press replays the last radio transmission.  This feature is ideal for student pilots, but every pilot can get distracted, so it avoids the embarrassment of asking air traffic to repeat a message.  A one touch Emergency Button automatically sets 121.5 MHz, along with volume levels. This ensures a successful transmission in what can be a stressful situation.

INTERCOM

Each radio has a built in two place intercom with auxiliary inputs for stereo music and audio warnings. Each radio can also integrate with a GPS navigator (SL40 and GTR225 protocol) to automatically display frequencies as they are required along the flight route. Finally, an airfield database can be loaded via the handy USB port. This database can contain over 200 of your preferred frequencies and identifiers.

PRODUCT DESIGN

The radio’s low profile design requires no external cooling fans.  The radios compact size and features make it a great choice for both forward and retro-fit installations. Each radio is designed to easily integrate with legacy radios, these include popular KY 196A, KY 197A and SL 40 models.

Specifications

  • Supply voltage: 11 - 33V
  • Typical consumption (at 14v): Receive: 175 mA, transmit: 2A
  • Nominal Transmitter Power: 10W
  • Operating temperature: -20°C to +55°C
  • Cooling requirement: No fan required
  • Weight: 0.95 kg / 2.09 lbs
  • Dimensions: 33H x 159W x 270L mm
  • Installed depth in tray: 230 mm long

In the box

  • TY96 radio
  • Mounting tray
  • Installation kit
  • USB stick
  • Installation manual
  • Operating manual
  • EASA FORM1



Stack Radio Operation Manual

Stack Radio Installation Manual
