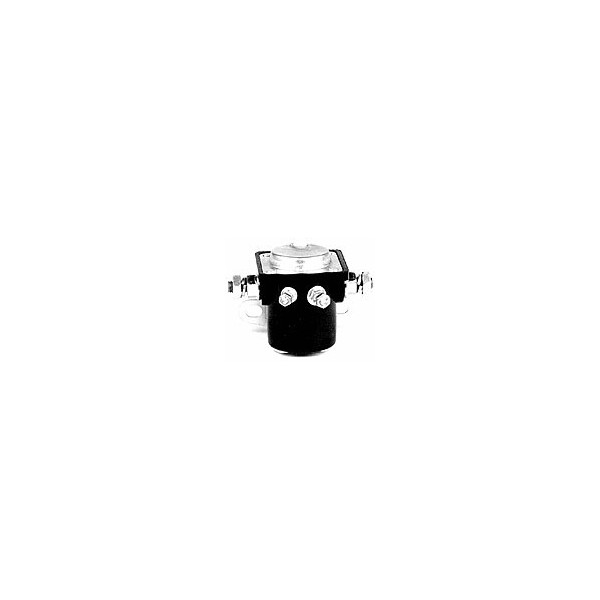

STARTER RELAY 12V
The starter relay powers the starter motor during engine startup.
Product added to cart
- EN ES
-
My account
Welcome Login
Cart
Product
(empty)
Browse by brands >
Categories
- Aircraft Accessories
- Engine Accessories
- Pilot Accessories
- Antennas
- Balloon Avionics
- Headsets
- Connectors
- Traffic Monitor (TCAS)
- EFIS/EMS
- Aero Hardware
- GPS Navigators
- Flight Instruments
- Engine Instruments
- Intercoms
- Lighting
- Windsocks
- Tires and tubes
- VHF Radios
- Fuel Filling
- Safety
- Fuel System
- Electric System
- Probes
- Transponder
- Electric Trims
Browse by brands >
Categories
- Aircraft Accessories
- Engine Accessories
- Pilot Accessories
- Antennas
- Balloon Avionics
- Headsets
- Connectors
- Traffic Monitor (TCAS)
- EFIS/EMS
- Aero Hardware
- GPS Navigators
- Flight Instruments
- Engine Instruments
- Intercoms
- Lighting
- Windsocks
- Tires and tubes
- VHF Radios
- Fuel Filling
- Safety
- Fuel System
- Electric System
- Probes
- Transponder
- Electric Trims
Aeroplans Blaus
-
Navigate by brands
-
Description
The starter relay is designed to power supply the electric starter motor during the necessary time to start the combustion engine. It cannot be left permanently connected, for this mission you must use a master relay.
The starter relay has 5 terminals:
- BAT: Voltage input connected to the battery. Copper terminal.
- LOAD: voltage output connected to the starter. Copper terminal.
- CONTROL "S": Activates the relay when +12V are connected to this terminal and the mounting plate is connected to ground. In this condition BAT is connected to LOAD. Stainless steel tilted terminal labeled "S".
- CONTROL "I": Do not connect.
- MOUNTING PLATE: Must be connected to ground.
Specifications
- Power consumption: 3,8A when activated
- Duty cycle: 25%
- Weight: 340g
