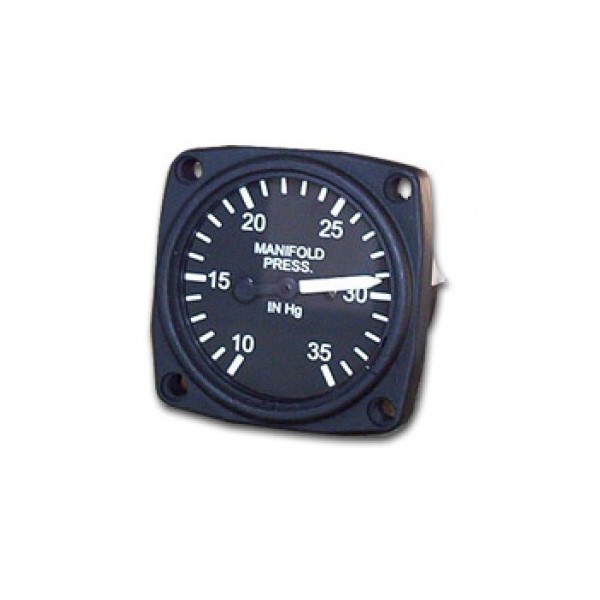

0-35psi UMA MANIFOLD PRESS

Inlet pressure gauge. For Rotax 912.

In stock! Ref. 51304

276,93 € + VAT (335,09 € VAT Inc.)

Quantity

▲
▼

Description

The manifold pressure gauge indicates the pressure of air at carburettor inlet.

With the engine off it shows barometric air pressure. With the engine running this pressure is always lower than the atmospheric pressure (non-turbo engine). Manifold Pressure is directly related to the power available in the engine: If it is much less than atmospheric pressure we have much power available, if it approaches atmospheric pressure we have little power available.

Traditionally Manifold Pressure indicators are calibrated in inches of mercury (in Hg). The normal barometric pressure is 29.92 in Hg, equivalent to 1013mb.

In the Rotax 912 is connected to the yellow cap is in the metal tube that connects the 2 carbs.

Specifications

Manufacturer: UMA
Model: 7-100-20
Range: 0-35 psi
Format: 57mm
Press port: 1/8" female

User manual

Accessories

PLASTIC RACCORD STRAIGHT 1/8" to 6mm

Thread 1/8" male and spigot for 1/4" line

Ref. 59102

1,45 € + VAT (1,75 € VAT Inc.)
PLASTIC RACCORD ANGLED 1/8" to 6mm

Thread 1/8" male and spigot for 1/4" line

Ref. 59101

1,58 € + VAT (1,91 € VAT Inc.)
PLASTIC RACCORD "T" 6mm - 1/8" - 6mm

Thread 1/8" male and dual spigot for 1/4" line

Ref. 59110

1,55 € + VAT (1,88 € VAT Inc.)
