Description
ADS-B Out Kit for TRT800H

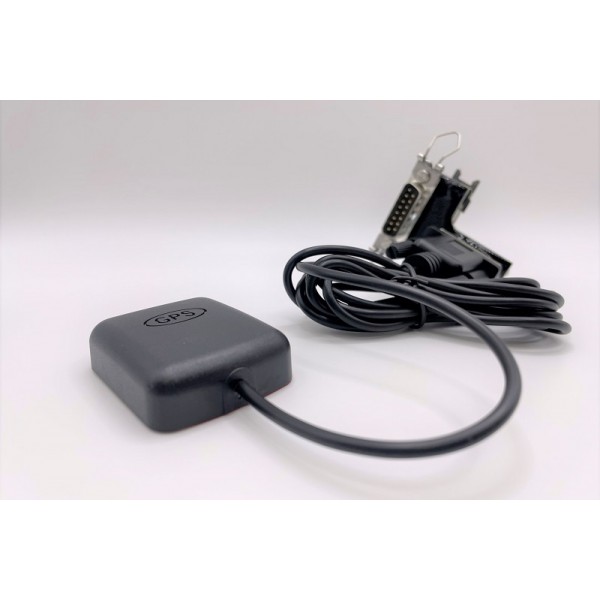

The kit includes an adapter and a GPS receiver.
With its three connections, the adapter can be connected to the transponder TRT800H, to the transponder-connector (TRT800EMxx) and a GPS receiver at the same time.
As a result, the transponder receives the necessary GPS data / coordinates from the GPS receiver and can transmit its position data.

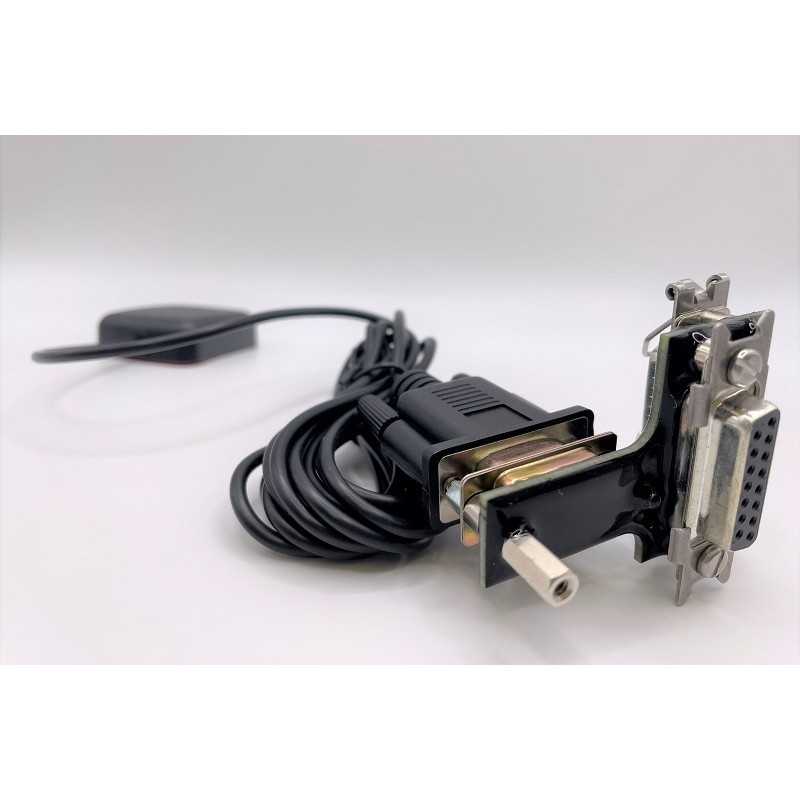

The adapter comes between the transponder TRT800H and the transponder connector (TRT800EMxx).
It converts the switched 12Volt output from pin 6 to 5 Volt and connects it to pin 9 of the 9-pin Sub-D connector.
The serial interface is brought out on pin 2 Tx and pin 3 Rx.
Connections:
- Connector 15 pole (male) for transponder connector TRT800EMxx
- Connector 15 pole (female) for transponder TRT800H
- Connector 9 pole (male) for GPS receiver
Installation note:
1. Connect adapter to tansponder TRT800H and transponder-connector TRT800EMxx
2. Connect GPS receiver to the adapter
3. Set DataPort1 to "GPS NMEA-4800" on the transponder
item no: PNETAD82-KIT
The adapter and the GPS receiver are also available separately:
item no adapter: PNETAD82
item no GPS receiver: GPS-EMAD82
Please note:
- the adapter plug is only compatible with transponder TRT800H from hardware version HW 6.0 (from serial number 30580611) and software version SW 6.3
- and it´s not compatible with our flat transponder TRT800A (160mm housing), since the power supply for the adapter is missing here
