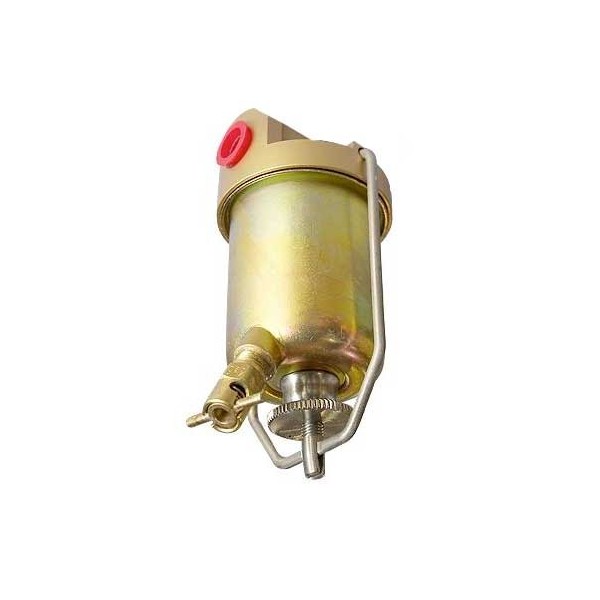

FILTER "GASCOLATOR" ACS

Filters water by decantation and the solid particles through wire mesh.

In stock! Ref. 41107

167,13 € + VAT (202,23 € VAT Inc.)

Quantity

▲
▼

Description

The primary mission Gascolator filter is to remove water that may contain gasoline.

The operation is as follows: Enter the fuel (and water that may contain) to the input marked 'IN ' filling the cup. The water and impurities are located at the bottom of the glass. Gasoline, less dense, is located at the top by clicking the exit 'out' through a metal mesh filter, thus ensuring a flow of gas out free water and solid particles.

The water and impurities deposited on the bottom of the glass must be removed through the drain valve with the proper tool. This operation must be performed before the 1st flight of the day.

After a period of inactivity, the gas that fills the cup of Gascolator can evaporate. To facilitate filling the cup and start the engine at the first attempt Gascolator has an additional entry in the top for connection of a 'Prime'. Gasoline also injected by Prime Gascolator passes through the filter.

Occasionally it is interesting to open the Gascolator, clean the metal mesh filter and replace the rubber gasket.

Accessories

GASKET FOR GASCOLATOR ACS

Ref. 27110

10,29 € + VAT (12,45 € VAT Inc.)
DRAIN TOOL

Ref. 47201

10,24 € + VAT (12,39 € VAT Inc.)
METAL RACCORD STRAIGHT 1/8" to 6mm

Male threaded 1/4" to 6mm spigot

Ref. 59204

3,26 € + VAT (3,94 € VAT Inc.)
METAL SCREW CAP 1/8"

Ref. 59205

1,39 € + VAT (1,68 € VAT Inc.)

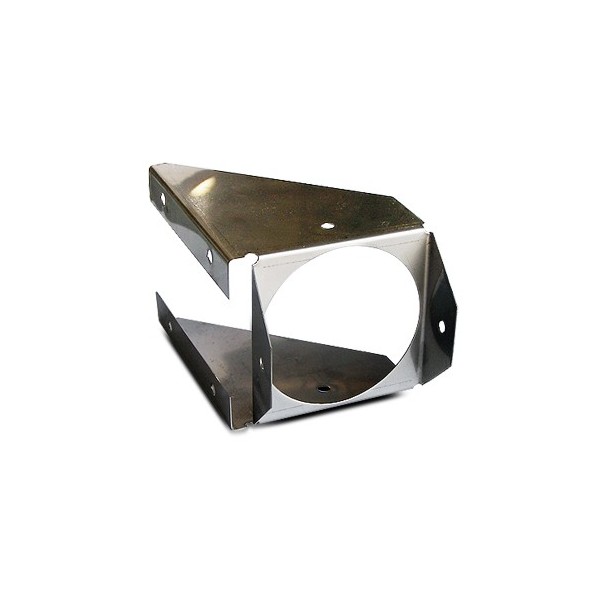

SUPPORT FOR ACS GASCOLATOR

Ref. 41109

31,69 € + VAT (38,34 € VAT Inc.)
FILTER FOR ACS GASCOLATOR

Ref. 41110

4,97 € + VAT (6,01 € VAT Inc.)
CURTIS VALVE CCA-1550

Ref. 41129

23,93 € + VAT (28,96 € VAT Inc.)
METAL RACCORD STRAIGHT 1/4" TO 8mm

For air and gas. Threaded 1 / 4 inch and pin to 8mm ID tube 1 / 4 inch (blue).

Ref. 59208

2,94 € + VAT (3,56 € VAT Inc.)
