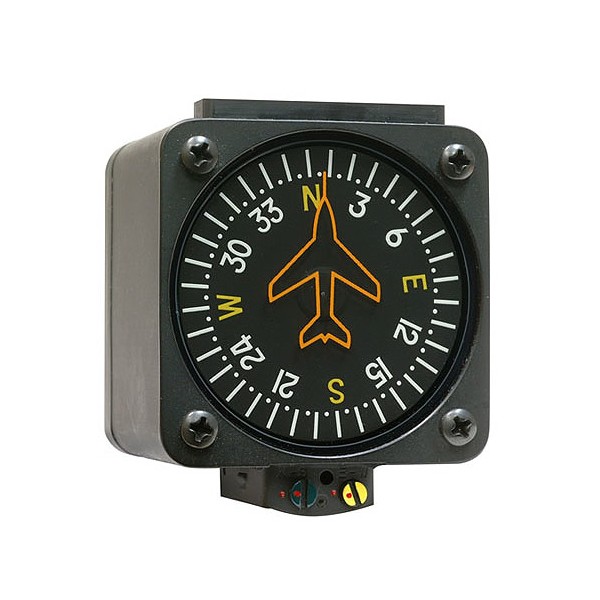

VERTICAL CARD COMPASS PAI-700

Panel or mount support

In stock! Ref. 49401

939,17 € + VAT (1.136,40 € VAT Inc.)

Quantity

▲
▼

Description

The Precision Vertical Card Compass is a totally new concept for todays aircraft. It is a dry compass, designed to replace the float/liquid type compass -- no more leaking fluid or backward azimuth readings. It uses eddy current damping and as such has no overshoot. Consists of a 2" vertical rotating dial which is compared with a fixed miniature airplane (lubber line) to present the magnetic heading of the aircraft at all times. Heading information is more natural because the heading is read at the 12 oclock position and off the nose of the miniature aircraft.

The compass card rotates and presents all quadrants in their true relation to line of flight. Requires no power (except for lighting) to operate. Fully TSOd. Installed in many current production aircraft & helicopters. Size: 2-7/8"H x 2-3/8"W x 2-1/8"D. Wt. 0.6 lb. After installing compass must be compensated using standard compensation procedures. Also used in sailplanes.

Specifications

Manufacturer: Precision Aviation, Inc.
Model: PAI-700
Approval: FAA TSO-C7c
Lighting: 12V
Format: 57mm
Use: Northern hemisphere

Accessories

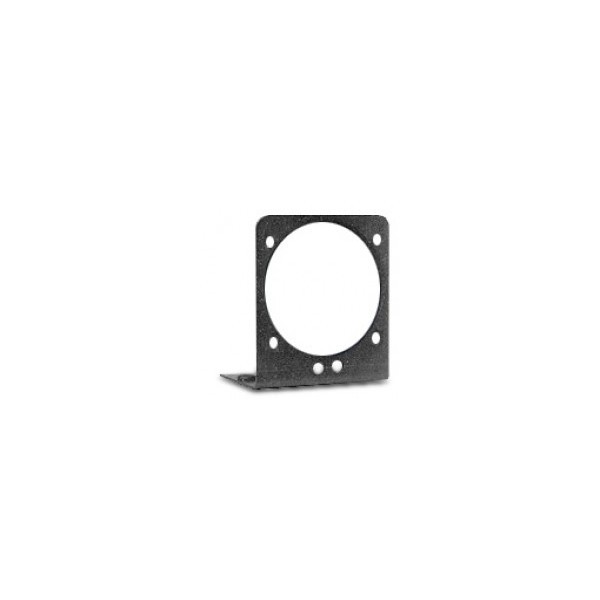

PACMG-2 VERTICAL MOUNT

Vertical mount.

Ref. 49408

129,81 € + VAT (157,07 € VAT Inc.)

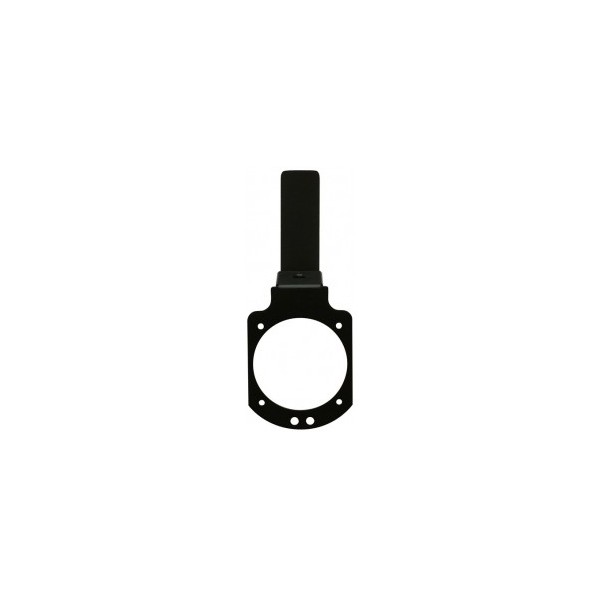

PACMO-UN VERTICAL MOUNT

Overhead mount.

Ref. 49409

78,26 € + VAT (94,69 € VAT Inc.)
