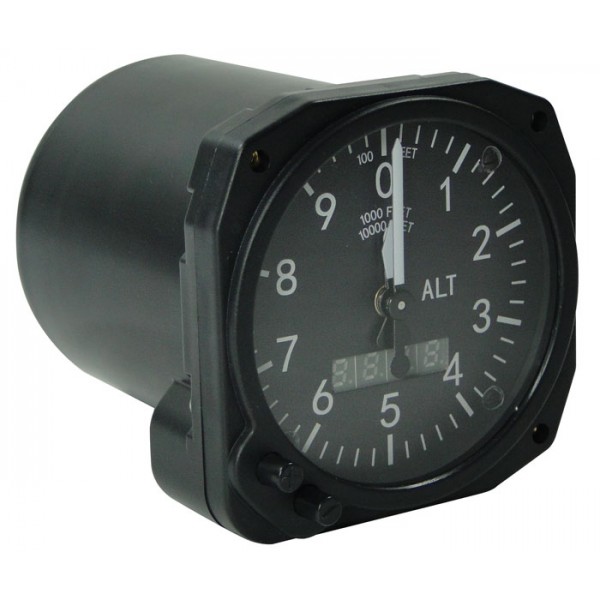

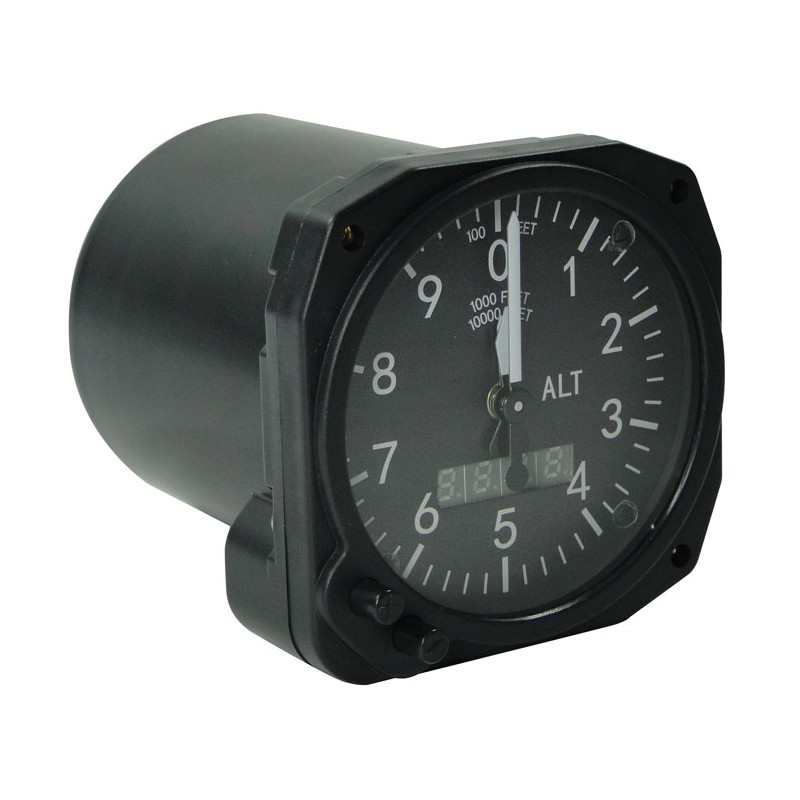

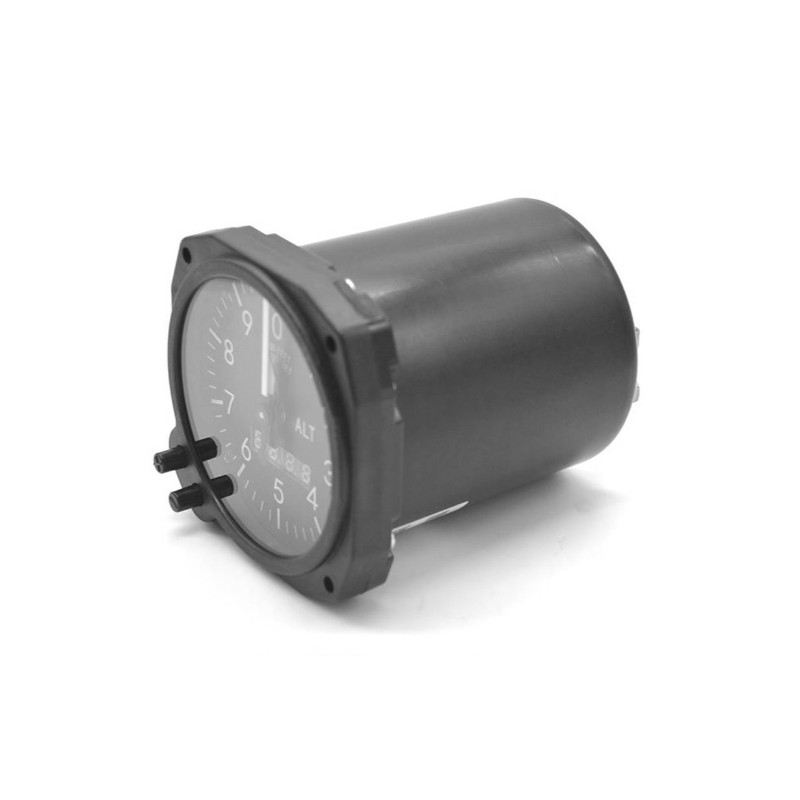

CFI ALT3-40F3 ELECTRONIC ALTIMETER

Scale: Feet, QNH: mb.


In stock! 49208

524,98 € + VAT (635,23 € VAT Inc.)

Description

This altimeter shows the height by means of the classic 3-pointer system, but performs the measurement using electronic sensors.

The advantages are clear: Greater precision and stability of the reading, lower weight, selectable QNH units and start-up self-test. As a drawback, it must be powered, so it will not work in the event of a power failure.

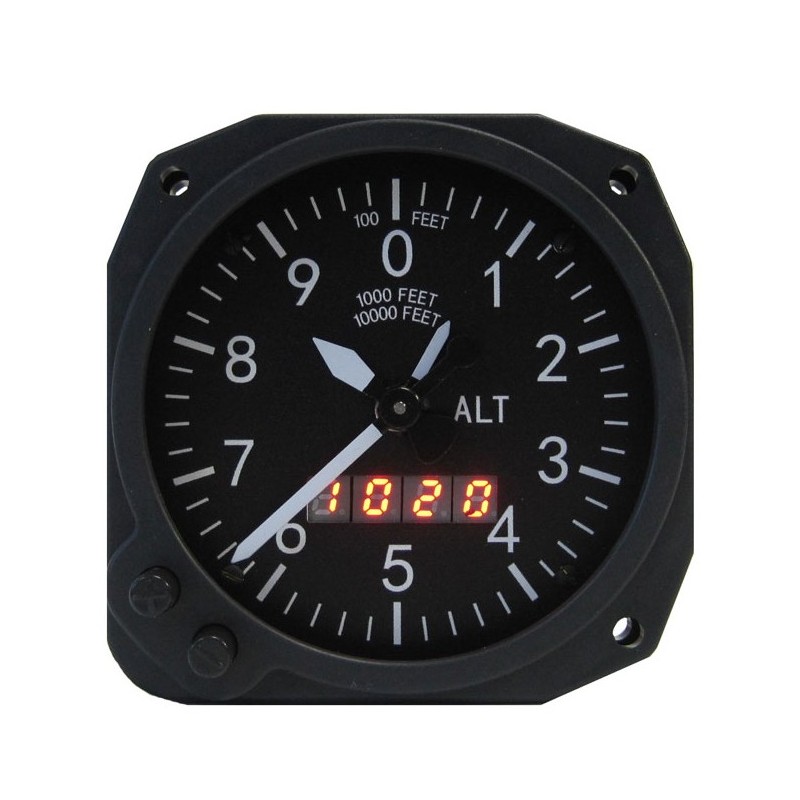

The QNH adjustment is made by means of the + / - buttons and is shown permanently on the instrument display.

Accessing the adjustment menu we can select the QNH units, calibrate the altimeter and modify the brightness of the display.

The instrument is mounted in a standard 80mm altimeter hole and is secured by four 6/32 screws (supplied). The corresponding nuts are recessed into the instrument, which greatly facilitates installation.



Specifications

  • Scale: Feet
  • Range: 0 - 38.000 feet
  • Format: 80 mm
  • QNH: Selectable mb/inHg/mmHg
  • Brand: CFI
  • Model: ALT3-40F3

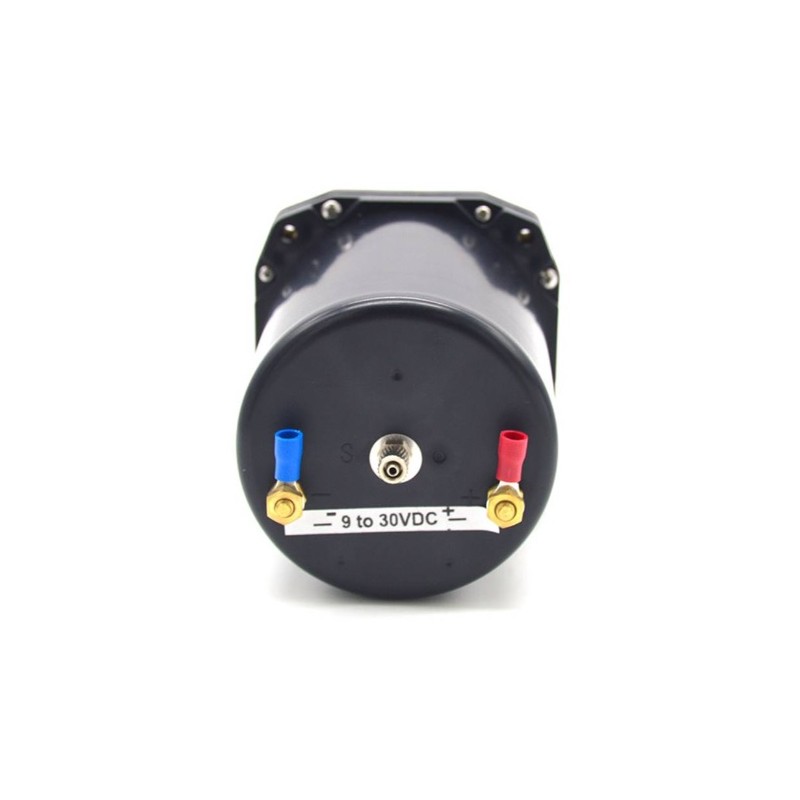

  • Static port: Male spigot for 6mm (1/4") ID hose
  • Power: 9 to 30 VDC, <0,3A (terminals supplied)
  • Weight: 365g



User manual

Accessories
  • FUEL PIPE 1/4"

    Urethane, blue. Price per meter.

    Ref. 27108
    6,02 € + VAT (7,28 € VAT Inc.)
